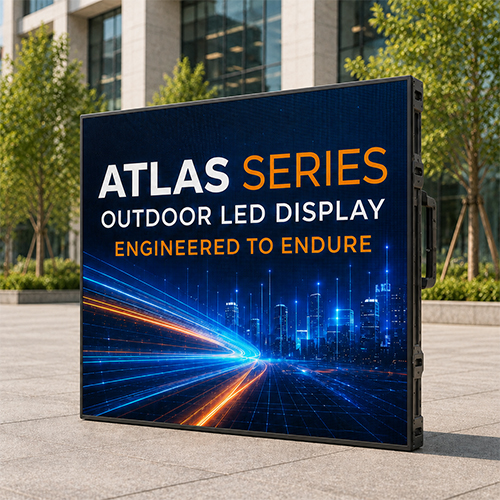

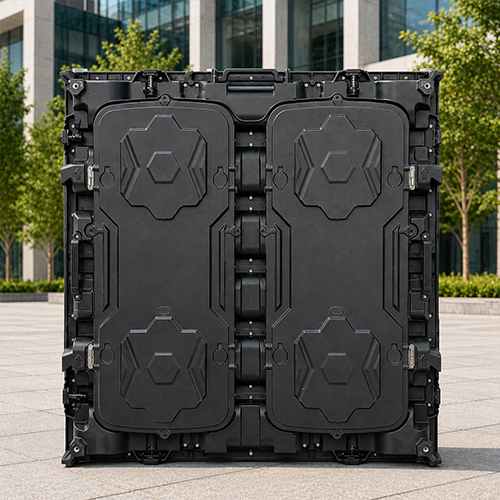

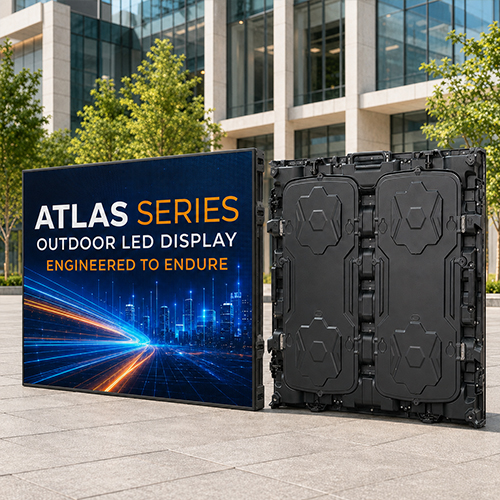

The Atlas Outdoor LED Display is engineered for demanding outdoor installations where durability, performance, and ease of maintenance are essential. Built with a robust die-cast aluminium cabinet, the Atlas delivers exceptional image quality, high weather resistance, and a lightweight design that simplifies installation and servicing. Whether it's a roadside billboard, stadium display, commercial façade, or digital advertising network, Atlas is designed to perform reliably around the clock in the harshest environments.
Combining precision engineering with premium components, the Atlas offers outstanding brightness, seamless panel alignment, fast-lock installation, integrated corner protection, and easy rear maintenance, making it the ideal solution for large-scale outdoor LED video walls.
From high-impact advertising to mission-critical public information systems, the 960×960 Outdoor LED Cabinet is engineered for diverse outdoor applications. Its large modular design, high brightness, weather-resistant construction, and energy-saving power supply ensure reliable performance while reducing operating costs across every installation.
Get Free Consultation
• High-impact roadside advertising with brilliant visibility for large-format outdoor campaigns.
• Ideal for highways, hoardings, building facades and high-traffic locations.
• Dynamic digital advertising designed to capture attention in busy urban environments.
• Deliver vibrant brand communication across high-traffic public spaces.
• Transform building facades into powerful digital communication platforms.
• Ideal for branding, promotions and large-format visual experiences.
• Create high-impact visual experiences for live sports and large audiences.
• Perfect for advertising, audience engagement and stadium-wide digital communication.
• Reliable outdoor displays for modern public communication and digital infrastructure.
• Ideal for city information, public messaging and smart urban environments.
| Parameter | P3.076 Outdoor | P4 Outdoor | P5 Outdoor | P6.67 Outdoor | P8 Outdoor | P10 Outdoor |
|---|---|---|---|---|---|---|
| Module Size (mm) | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 |
| Module Resolution | 104×52 | 80×40 | 64×32 | 48×24 | 40×20 | 32×16 |
| Scan Mode | 13S | 10S | 8S | 6S | 5S | 2S |
| LED Configuration | 1415 | 1921 | 2727 | 2727 | 3535 | 3535 |
| Brightness (nit) | ≥5000 | >5000 | >5500 | >6500 | >6500 | >7000 |
| Driving Method | Constant Current | Constant Current | Constant Current | Constant Current | Constant Current | Constant Current |
| Refresh Rate | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Grey Scale | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit |
| Constant Color Range | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Viewing Angle (H/V) | >140° / >140° | >140° / >140° | >140° / >140° | >140° / >140° | >140° / >140° | >140° / >140° |
| Contrast Ratio | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
| Module Input Voltage (V) | 4.5~5 | 4.5~5 | 4.5~5 | 4.5~5 | 4.5~5 | 4.5~5 |
| Module Max Current (A) | 7~8 | 7~8 | 7~8 | 7~8 | 7~8 | 7~8 |
| Max Power (W/㎡) | 750~800 | 750~800 | 750~800 | 750~800 | 750~800 | 750~800 |
| Average Power (W/㎡) | 250~300 | 250~300 | 250~300 | 250~300 | 250~300 | 250~300 |
| IP Level | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Input Voltage (V)* | 110~240 | 110~240 | 110~240 | 110~240 | 110~240 | 110~240 |
| Display Weight | 29.5kg | 29.5kg | 29.5kg | 29.5kg | 29.5kg | 29.5kg |
| Display Thickness | 106mm | 106mm | 106mm | 106mm | 106mm | 106mm |
| Life Time (Hours) | ≥100000 | ≥100000 | ≥100000 | ≥100000 | ≥100000 | ≥100000 |
| Working Temperature | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ |
| Working Humidity | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH |
| Certification | FCC/CE/RoHS/BIS |
