The core is designed as a practical and versatile indoor LED display solution for large-format installations where flexibility, ease of installation and cost efficiency are key priorities.

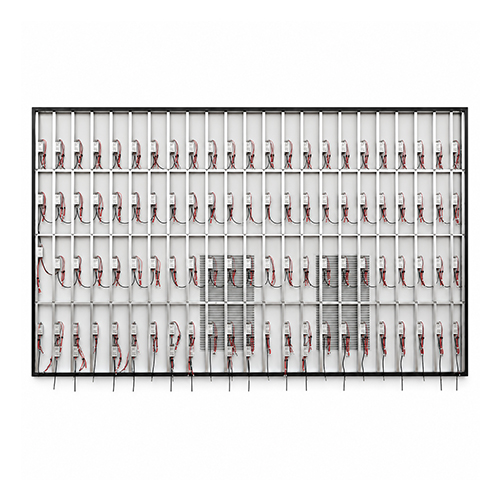

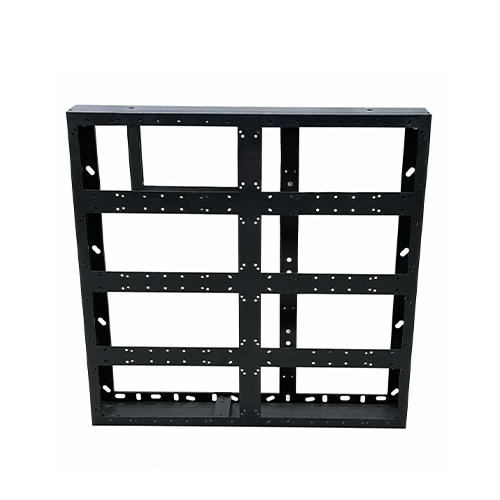

Unlike the Nova, which uses a precision-engineered die-cast aluminium cabinet, Core is built using a GI pipe mounting structure with magnetically fixed LED modules. This modular construction provides flexibility in creating displays of different sizes and configurations while keeping the overall installation economical and service-friendly.
Core is an ideal choice for businesses looking for a reliable indoor LED display without the need for a premium die-cast cabinet architecture.
From corporate offices and retail environments to exhibitions and transportation hubs, the core delivers exceptional visual communication with stunning clarity, seamless performance, and reliable operation. Designed for modern indoor applications, it creates engaging digital experiences that captivate audiences and enhance brand presence across every space.
Get Free Consultation

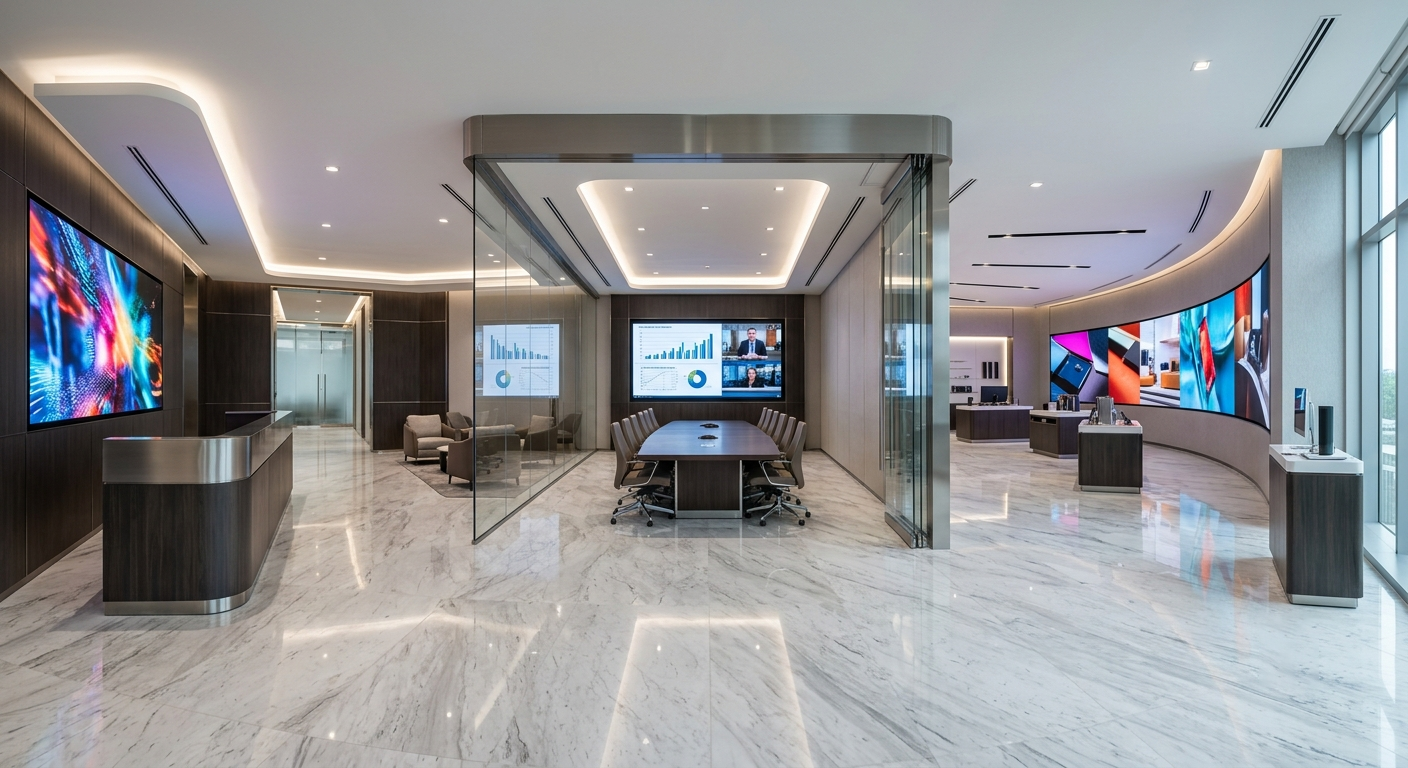

Reception • Boardroom • Showroom

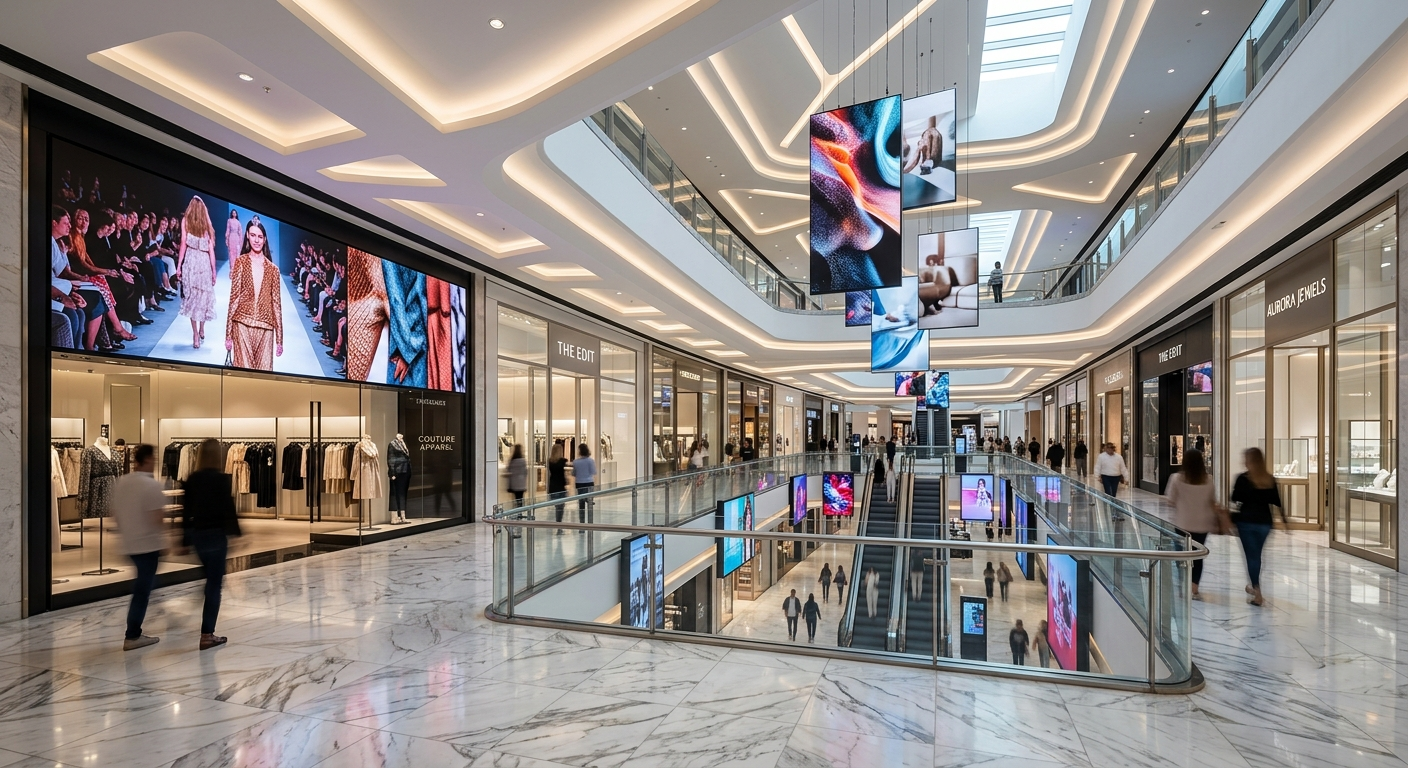

Advertising Walls • Product Launches • Digital Signage

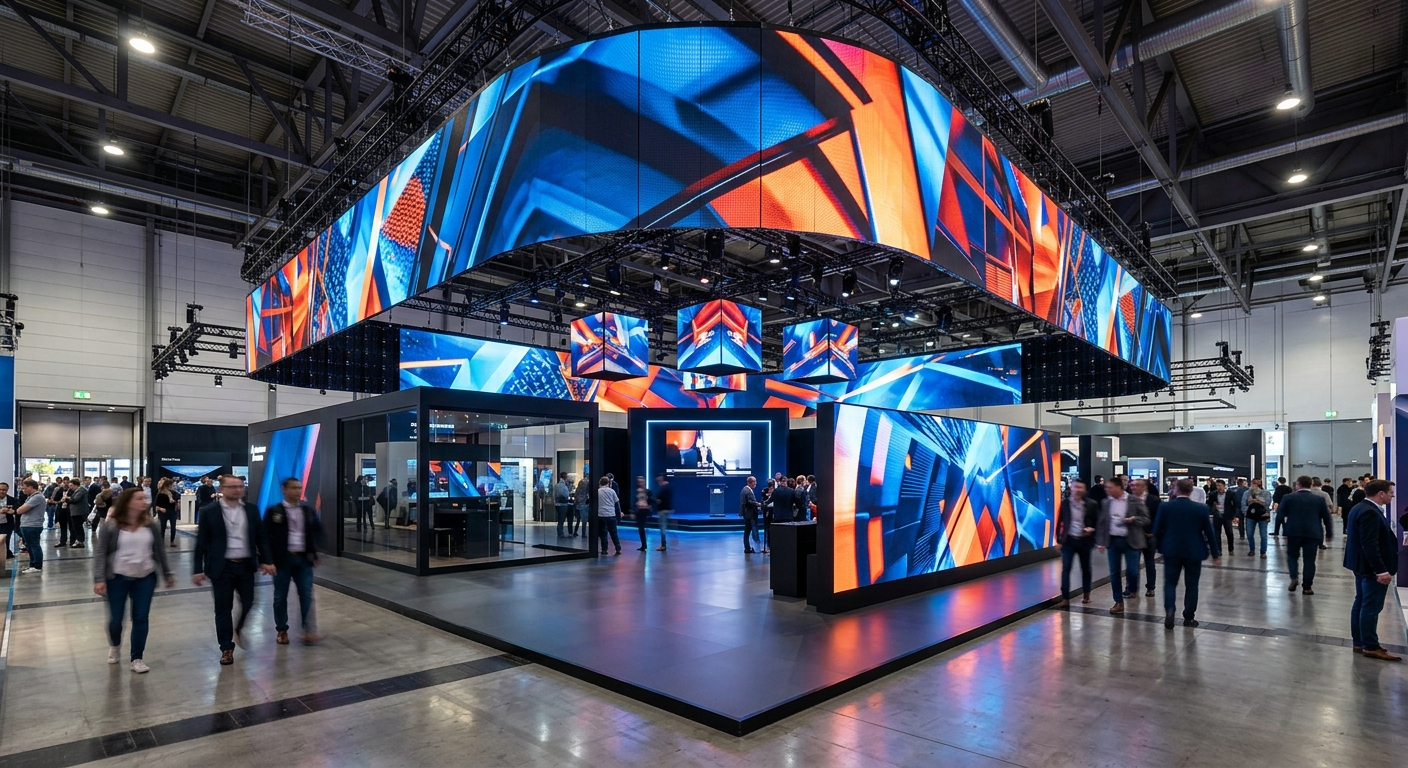

Conference • Stage • Trade Fairs

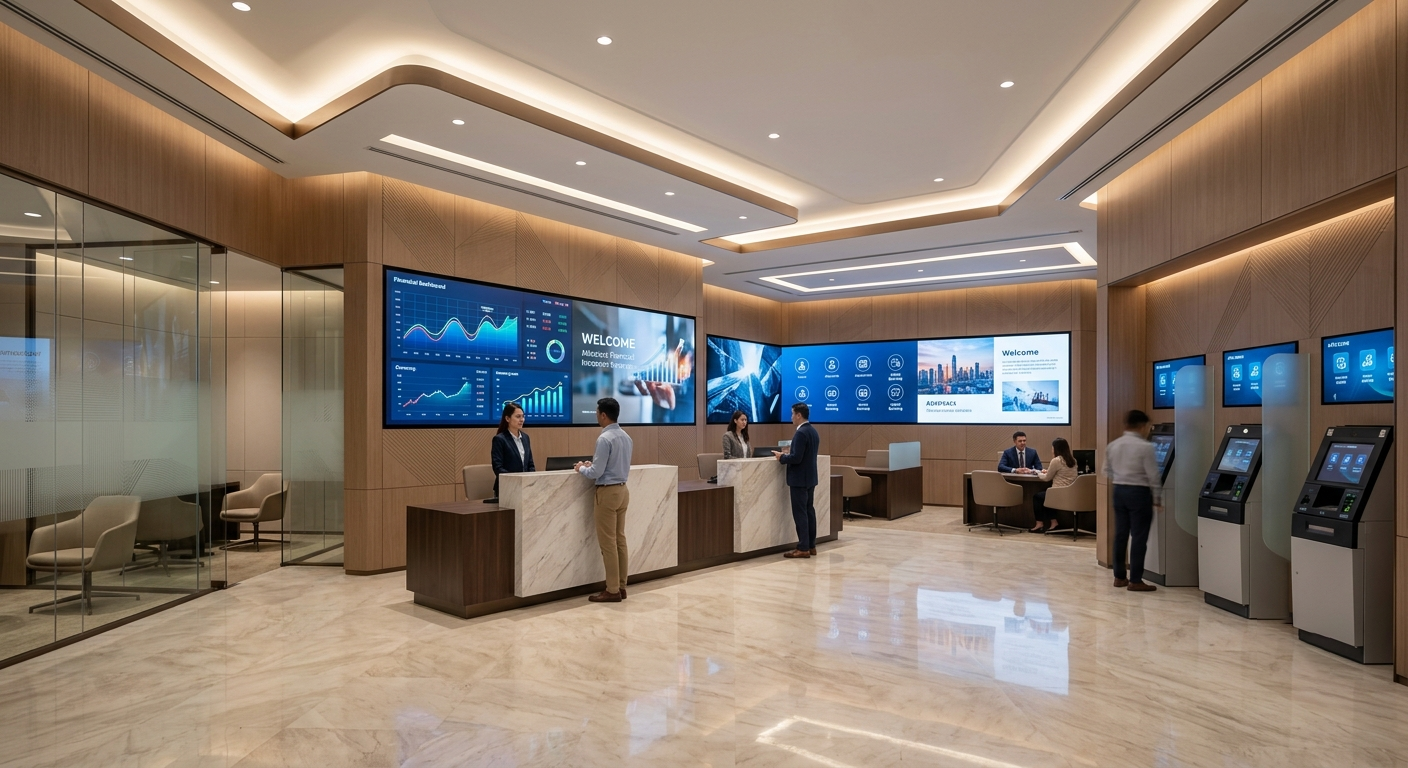

Financial Displays

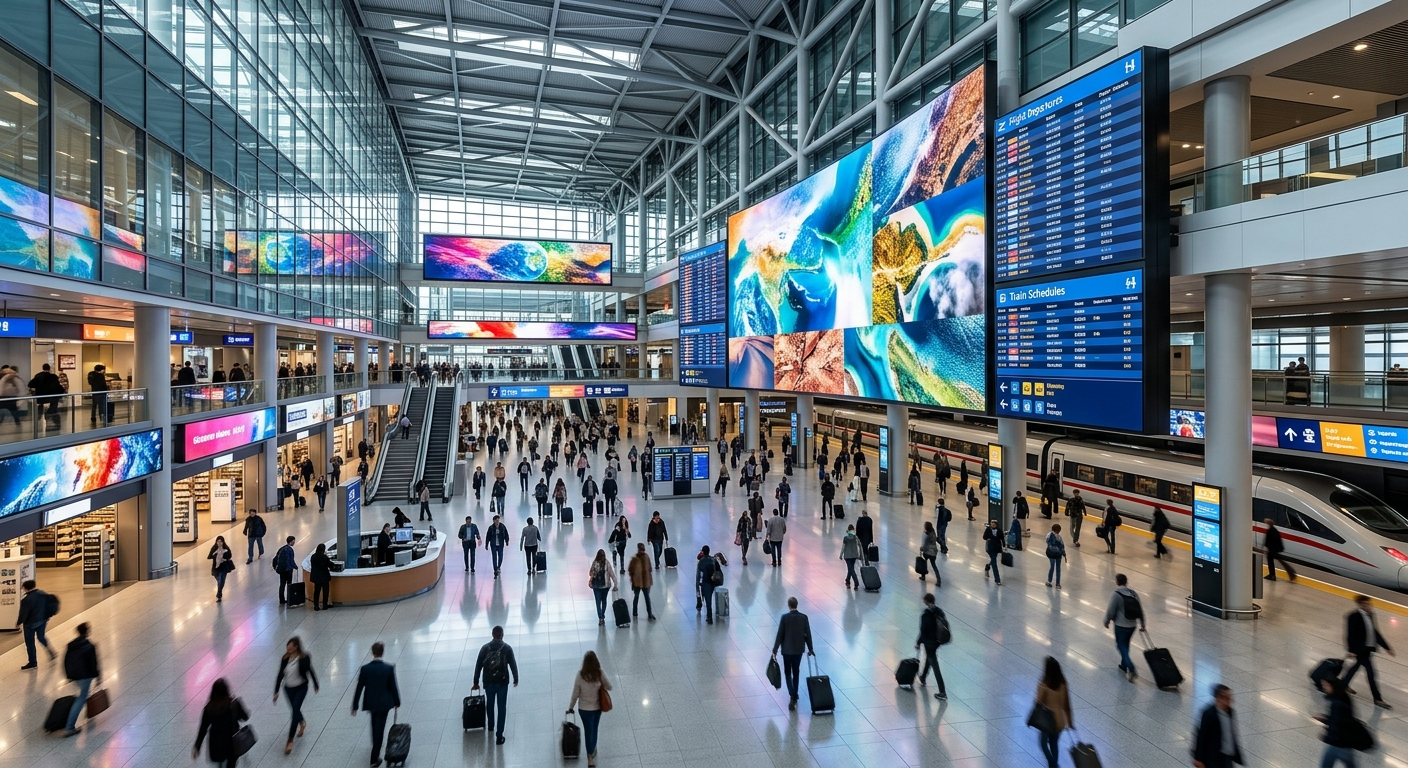

Airport • Metro • Bus
| Pixel Pitch | P1.25 Indoor | P1.538 Indoor | P1.86 Indoor | P2 Indoor | P2.5 Indoor |
|---|---|---|---|---|---|
| Module Size(mm) | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 |
| Module Resolution | 256×128 | 208×104 | 172×86 | 160×80 | 128×64 |
| Scan Mode | 64S | 52S | 43S | 40S | 32S |
| Brightness(nit) | >600 | >600 | >600 | >600 | >600 |
| Refresh Rate | >3840Hz | >3840Hz | >3840Hz | >3840Hz | >3840Hz |
| Grey Scale | 16bit | 16bit | 16bit | 16bit | 16bit |
| Viewing Angle | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 170°/170° |
| Contrast Ratio | 1000:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 |
| IP Level | IP42 | IP42 | IP42 | IP42 | IP42 |
| Life Time | ≥100000h | ≥100000h | ≥100000h | ≥100000h | ≥100000h |
| Certification | FCC/CE/RoHS/BIS | FCC/CE/RoHS/BIS | FCC/CE/RoHS/BIS | FCC/CE/RoHS/BIS | FCC/CE/RoHS/BIS |
