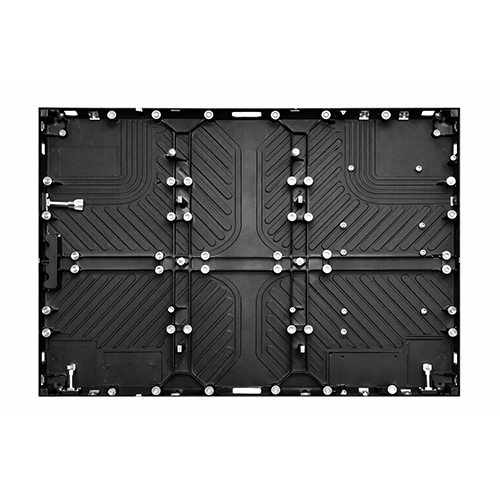

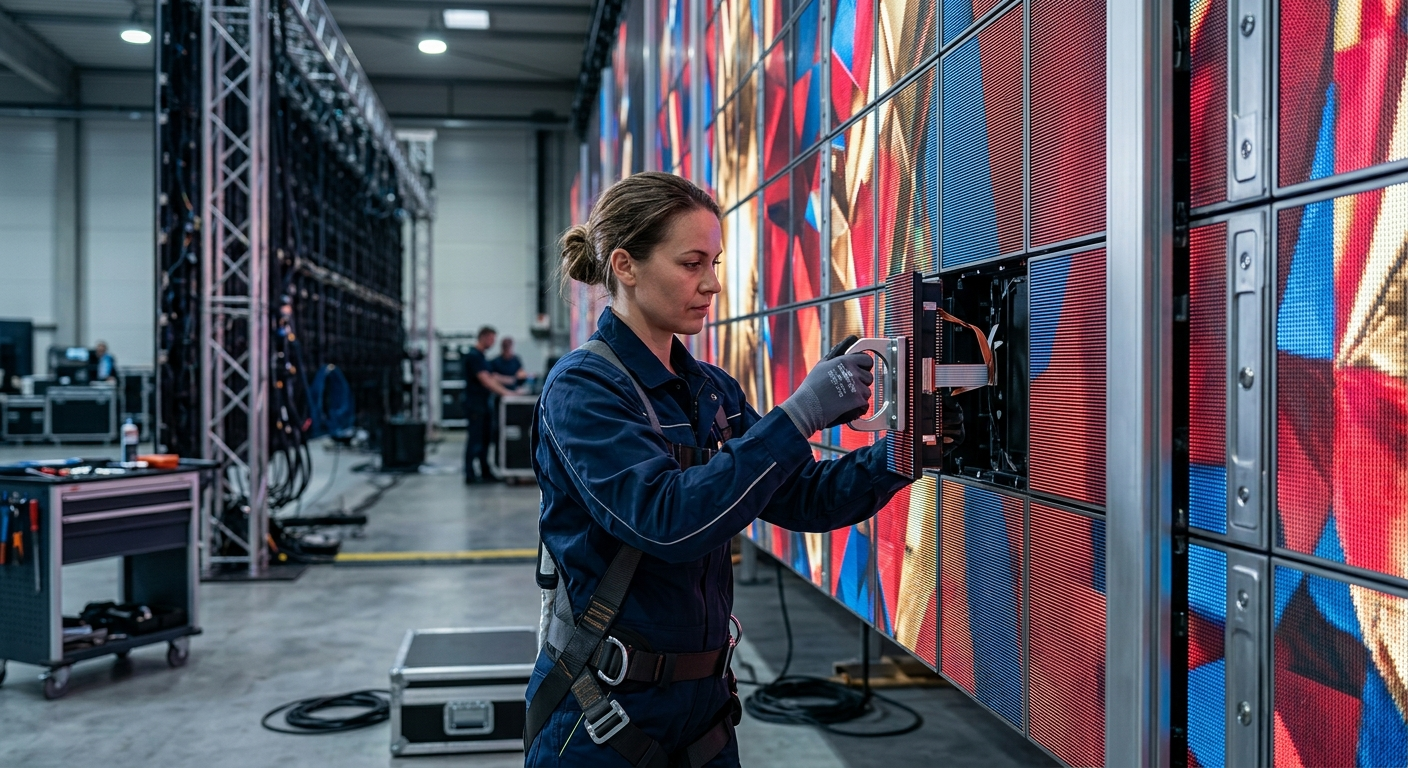

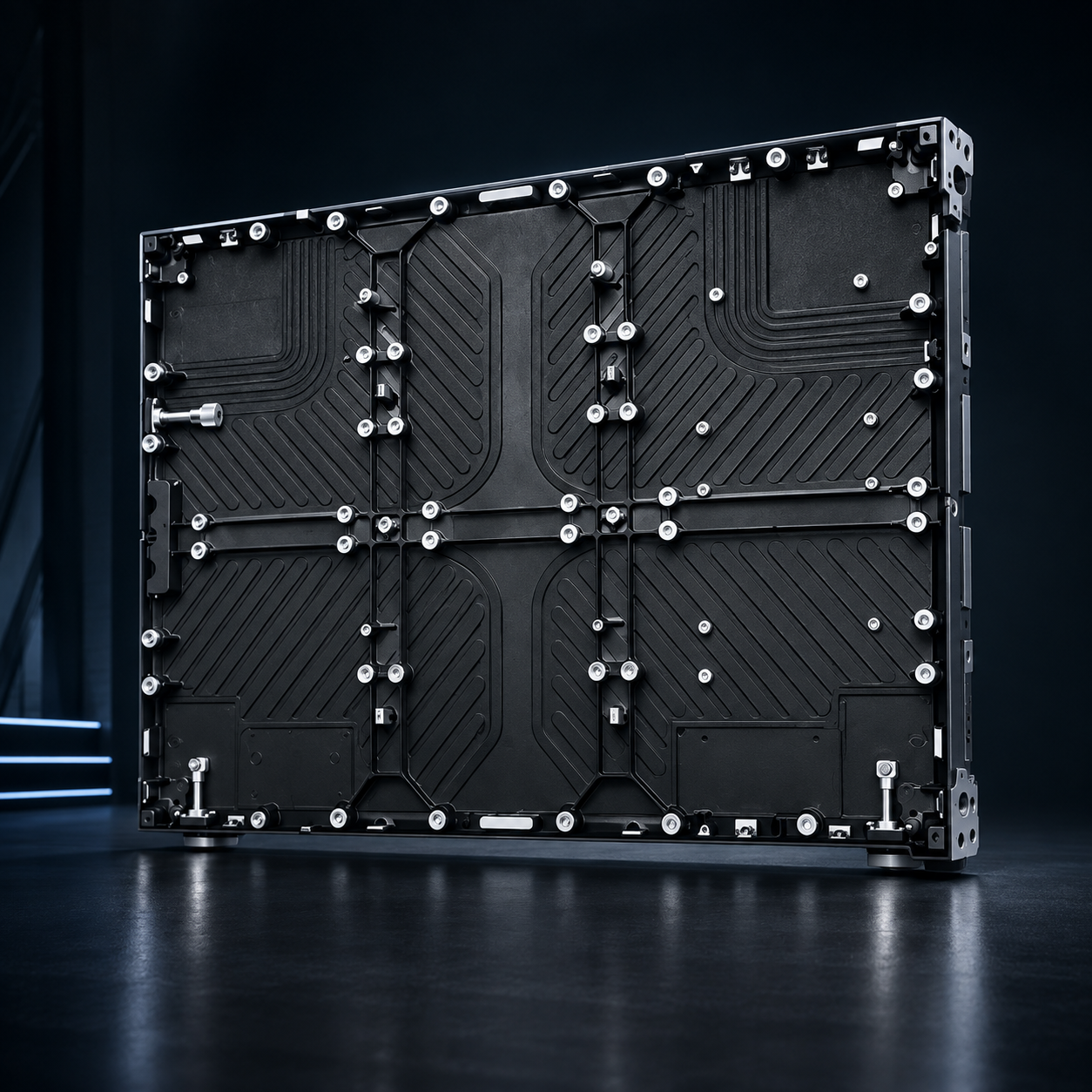

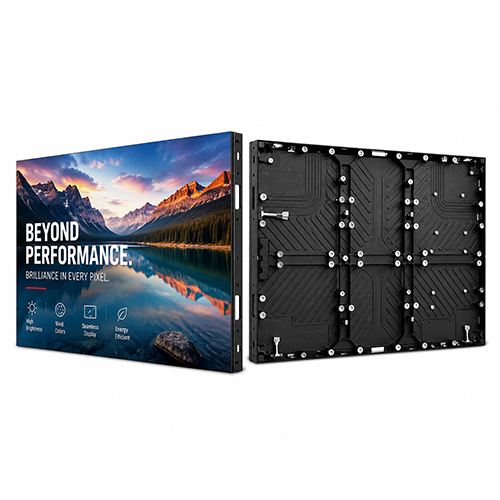

The Nova combines a lightweight aluminium die-cast structure with precision manufacturing to deliver a rigid, seamless and high-performance indoor LED display solution. Designed for demanding commercial and professional environments, the cabinet offers excellent structural stability, efficient heat dissipation and easy installation and maintenance.

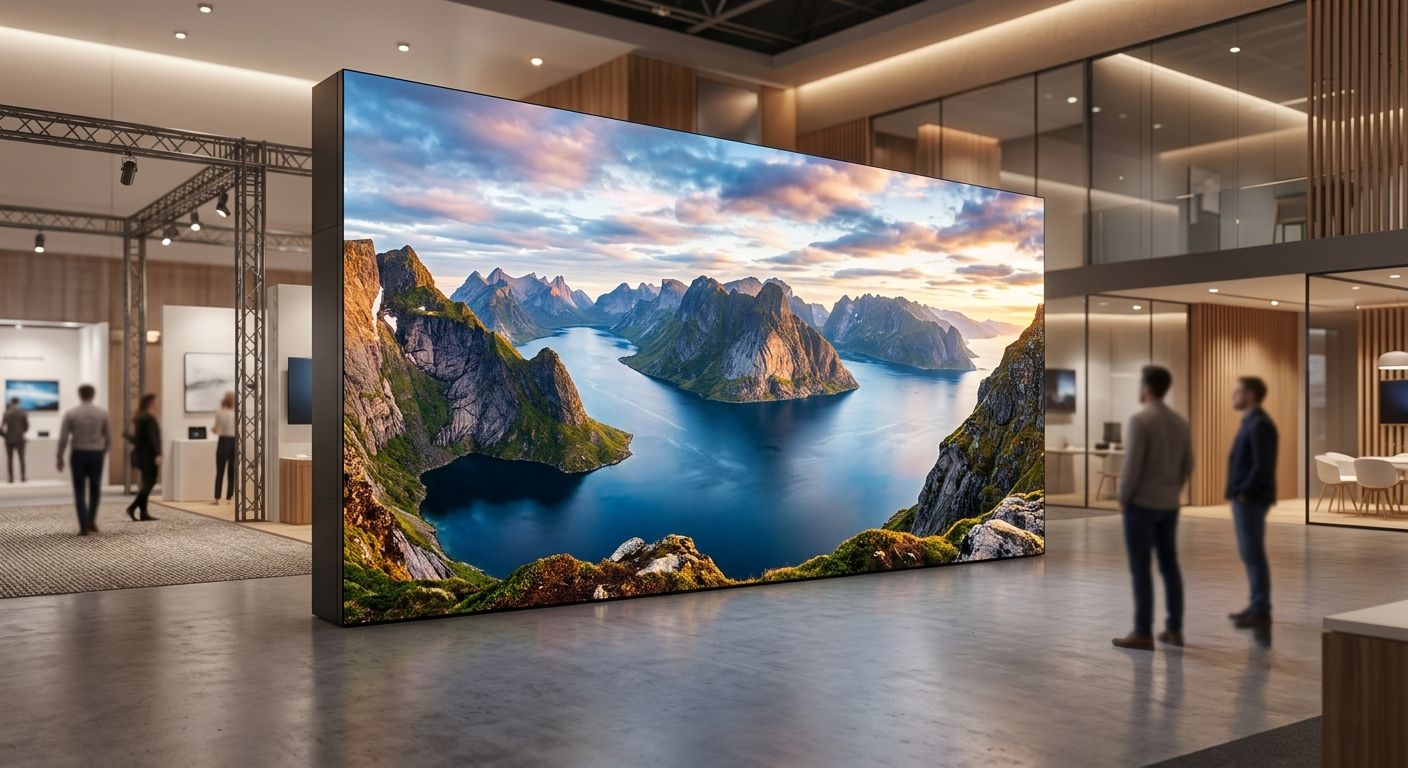

With its refined cabinet construction and clean modular design, Nova is built to create seamless, high-resolution LED walls that look as premium as the environments they are installed in.
Contact Us
From corporate offices and retail environments to exhibitions and transportation hubs, the Nova delivers exceptional visual communication with stunning clarity, seamless performance, and reliable operation. Designed for modern indoor applications, it creates engaging digital experiences that captivate audiences and enhance brand presence across every space.
Get Free Consultation
Reception • Boardroom • Showroom
Advertising Walls • Product Launches • Digital Signage
Conference • Stage • Trade Fairs
Financial Displays
Airport • Metro • Bus

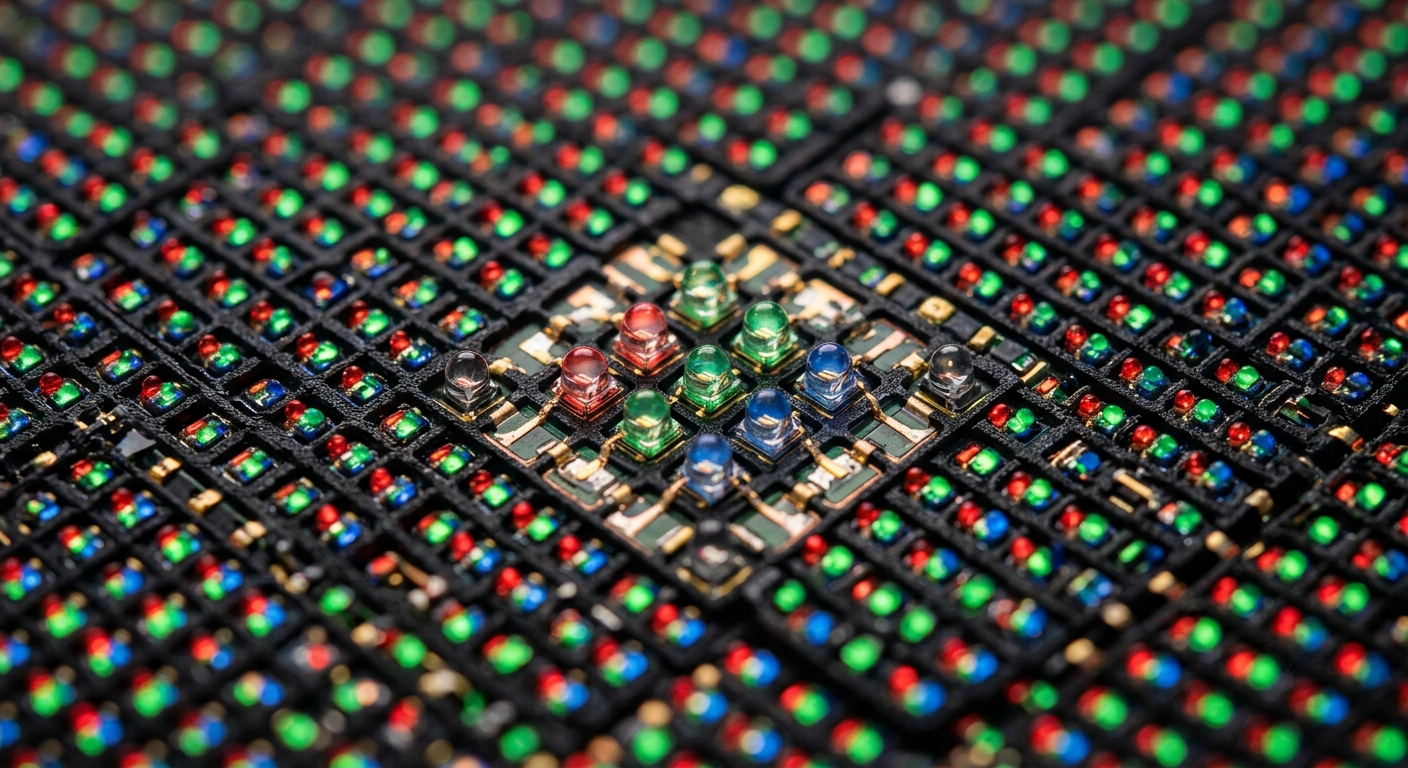

| Pixel Pitch | P1.25 Indoor | P1.538 Indoor | P1.86 Indoor | P2 Indoor | P2.5 Indoor |
|---|---|---|---|---|---|
| Module Size(mm) | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 |
| Module Resolution | 256×128 | 208×104 | 172×86 | 160×80 | 128×64 |
| Scan Mode | 64S | 52S | 43S | 40S | 32S |
| Brightness(nit) | >600 | >600 | >600 | >600 | >600 |

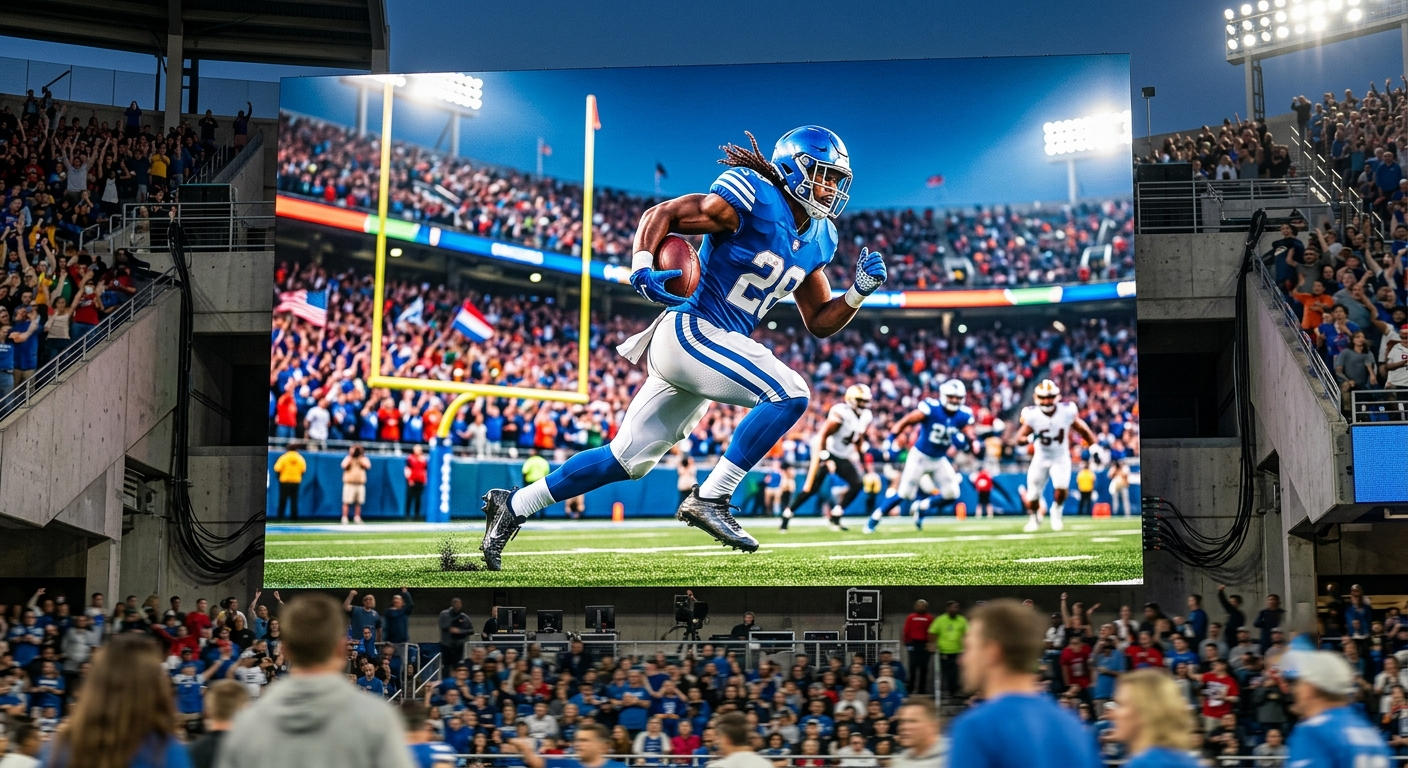

| Refresh Rate | >3840Hz | >3840Hz | >3840Hz | >3840Hz | >3840Hz |
| Grey Scale | 16bit | 16bit | 16bit | 16bit | 16bit |
| Viewing Angle | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 170°/170° |

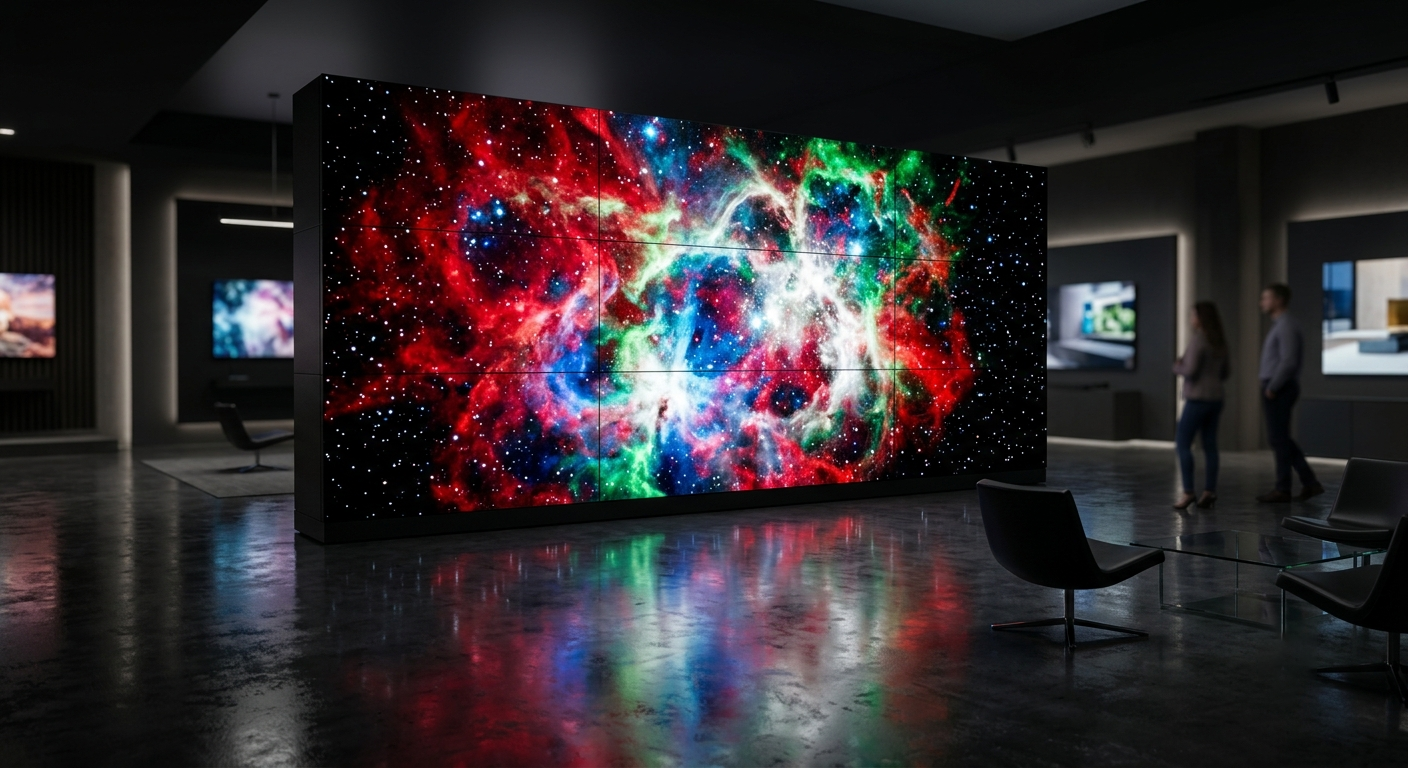

| Contrast Ratio | 1000:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 |
| IP Level | IP42 | IP42 | IP42 | IP42 | IP42 |
| Life Time | ≥100000h | ≥100000h | ≥100000h | ≥100000h | ≥100000h |
| Certification | FCC/CE/RoHS/BIS | FCC/CE/RoHS/BIS | FCC/CE/RoHS/BIS | FCC/CE/RoHS/BIS | FCC/CE/RoHS/BIS |
