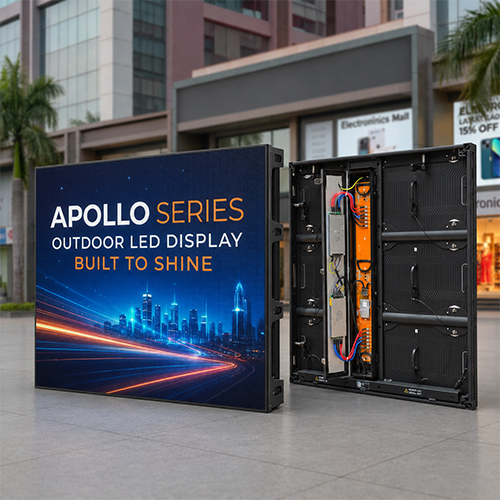

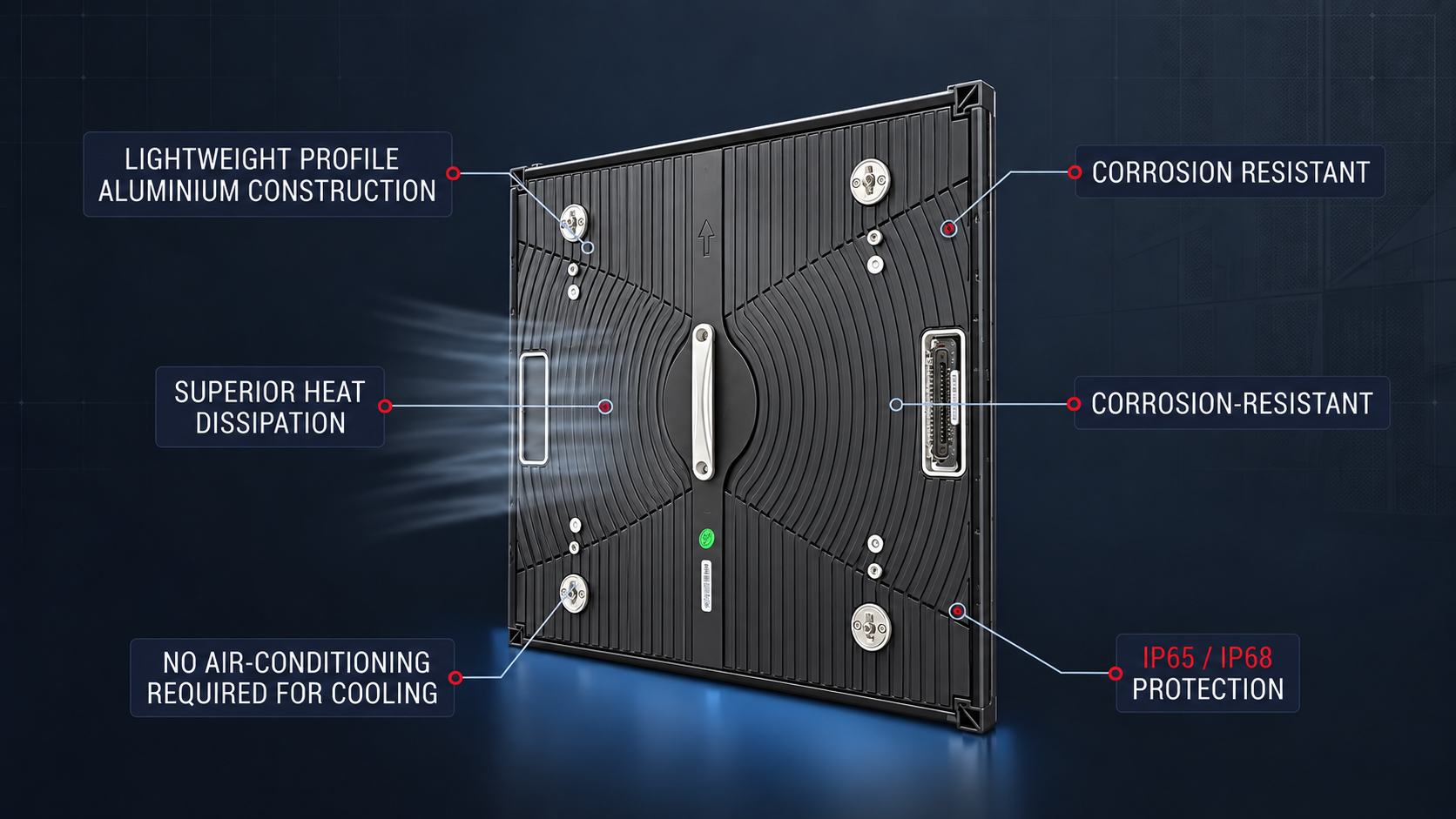

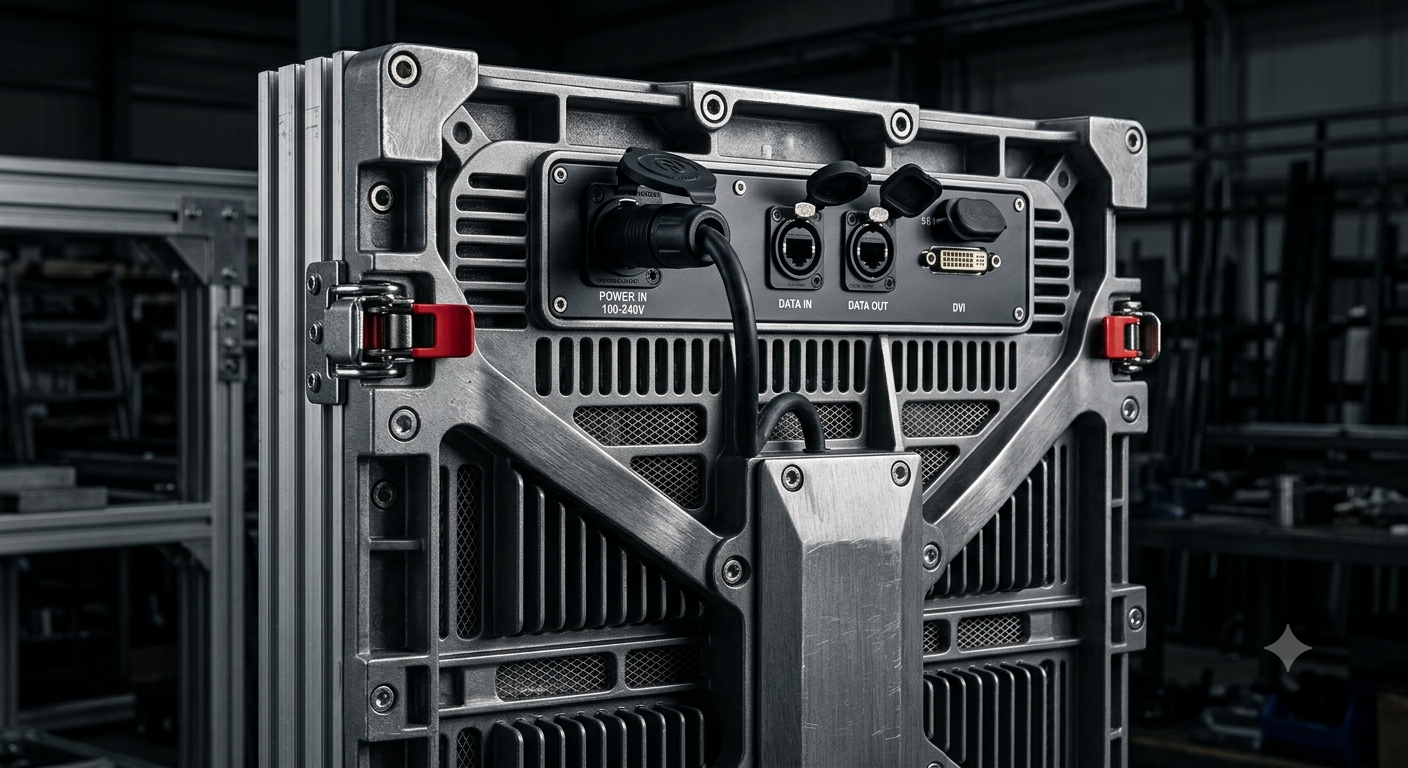

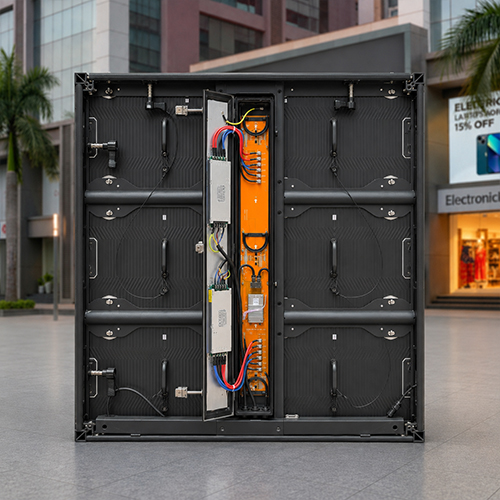

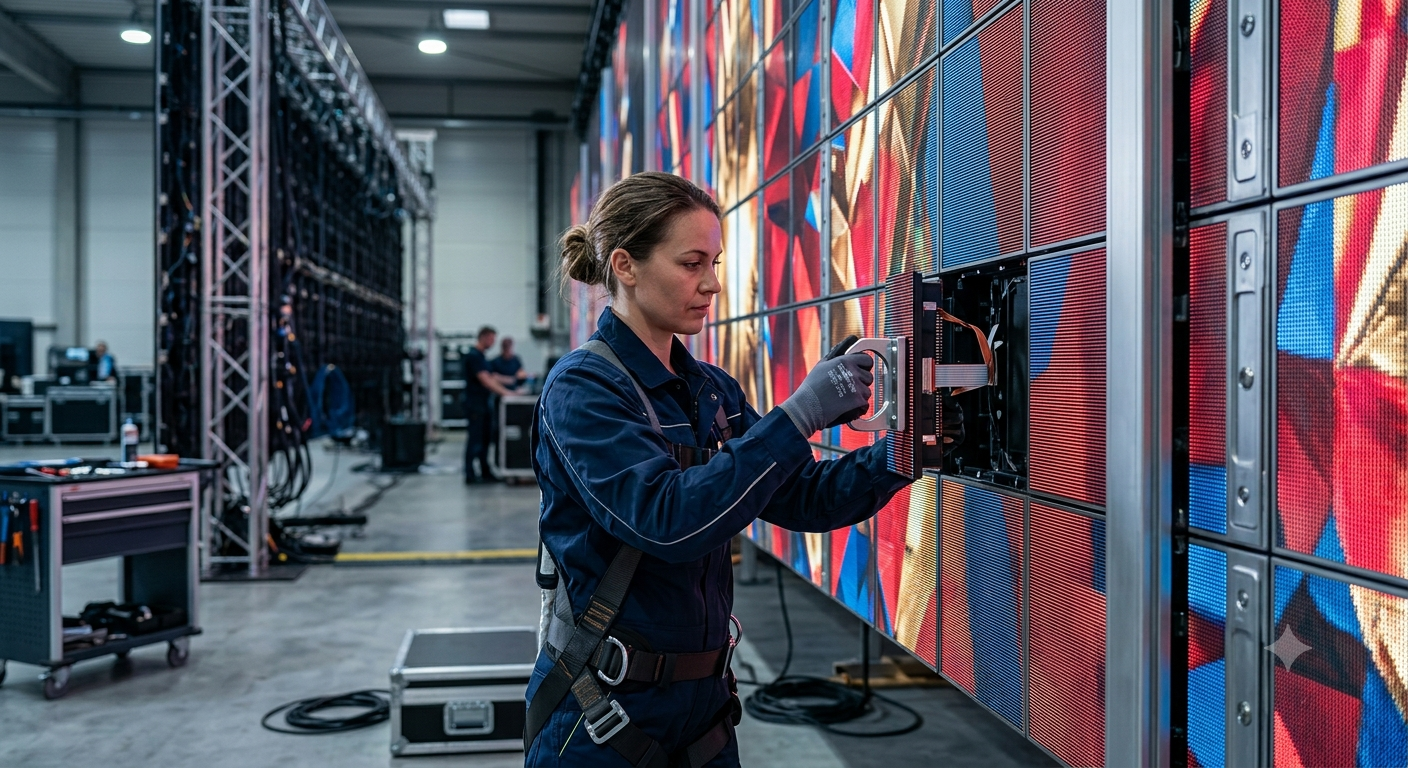

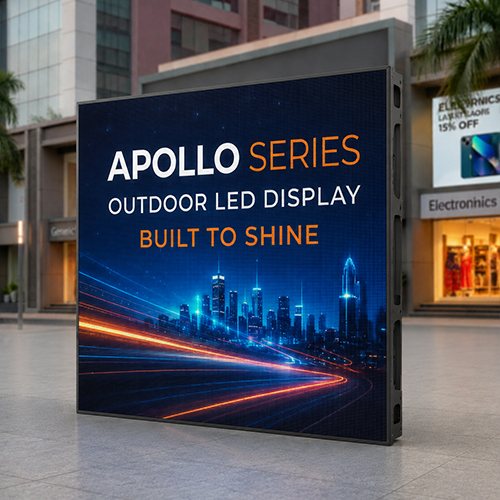

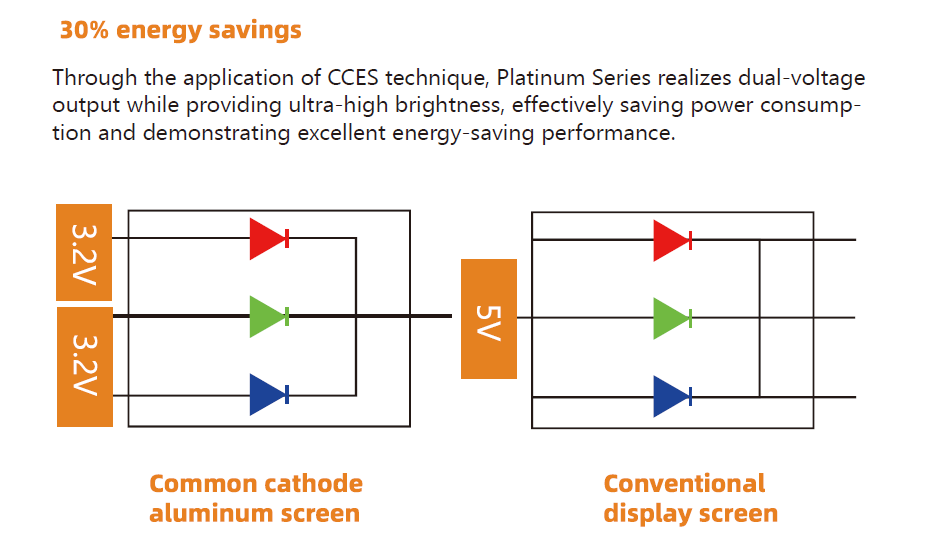

The Apollo Outdoor LED Cabinet is a premium die-cast aluminium LED display solution engineered for high-brightness outdoor advertising, stadiums, transportation hubs, commercial buildings, and large-format digital signage. Featuring an advanced CCES energy-saving design, lightweight aluminium construction, and support for front and rear maintenance, it delivers outstanding visual performance while significantly reducing power consumption and maintenance costs.
Contact Us
From high-impact advertising to mission-critical public information systems, the 960×960 Outdoor LED Cabinet is engineered for diverse outdoor applications. Its large modular design, high brightness, weather-resistant construction, and energy-saving power supply ensure reliable performance while reducing operating costs across every installation.
Get Free Consultation

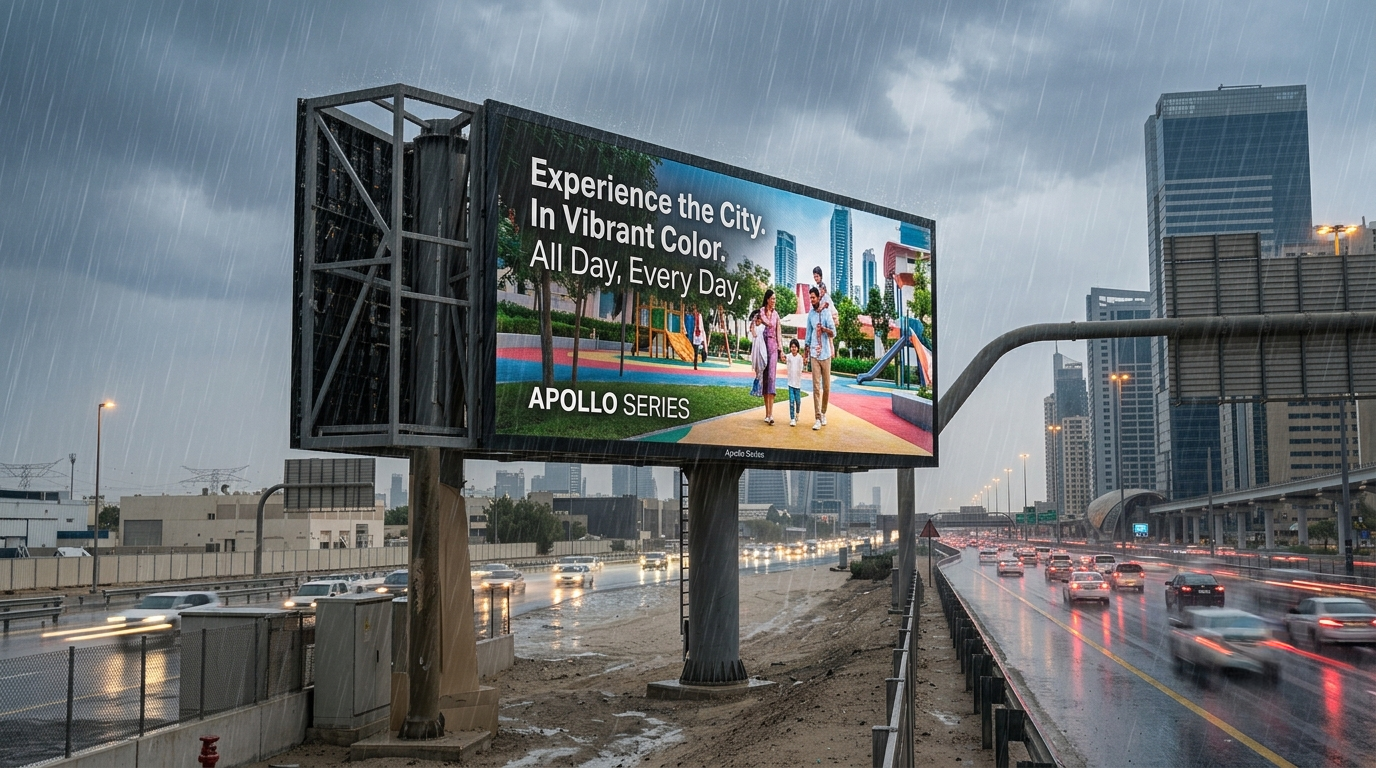

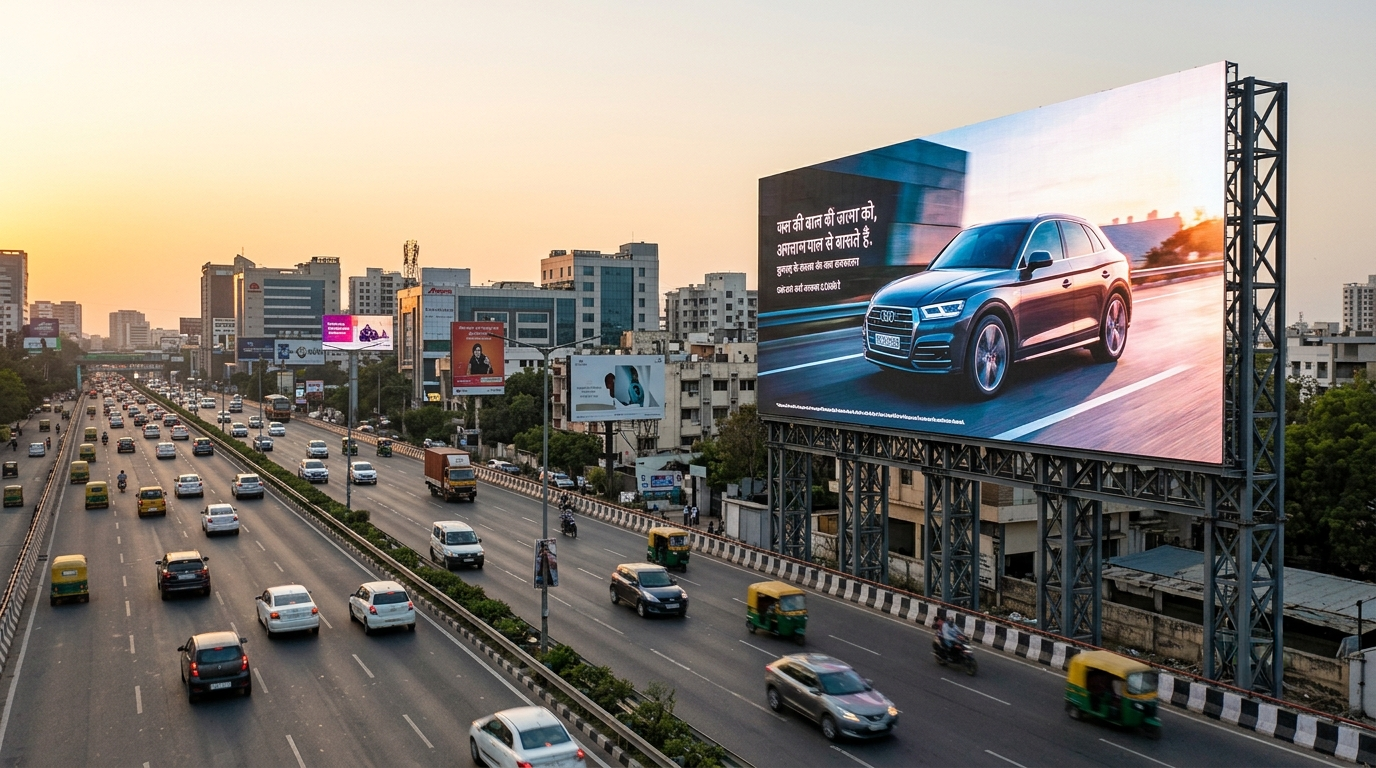

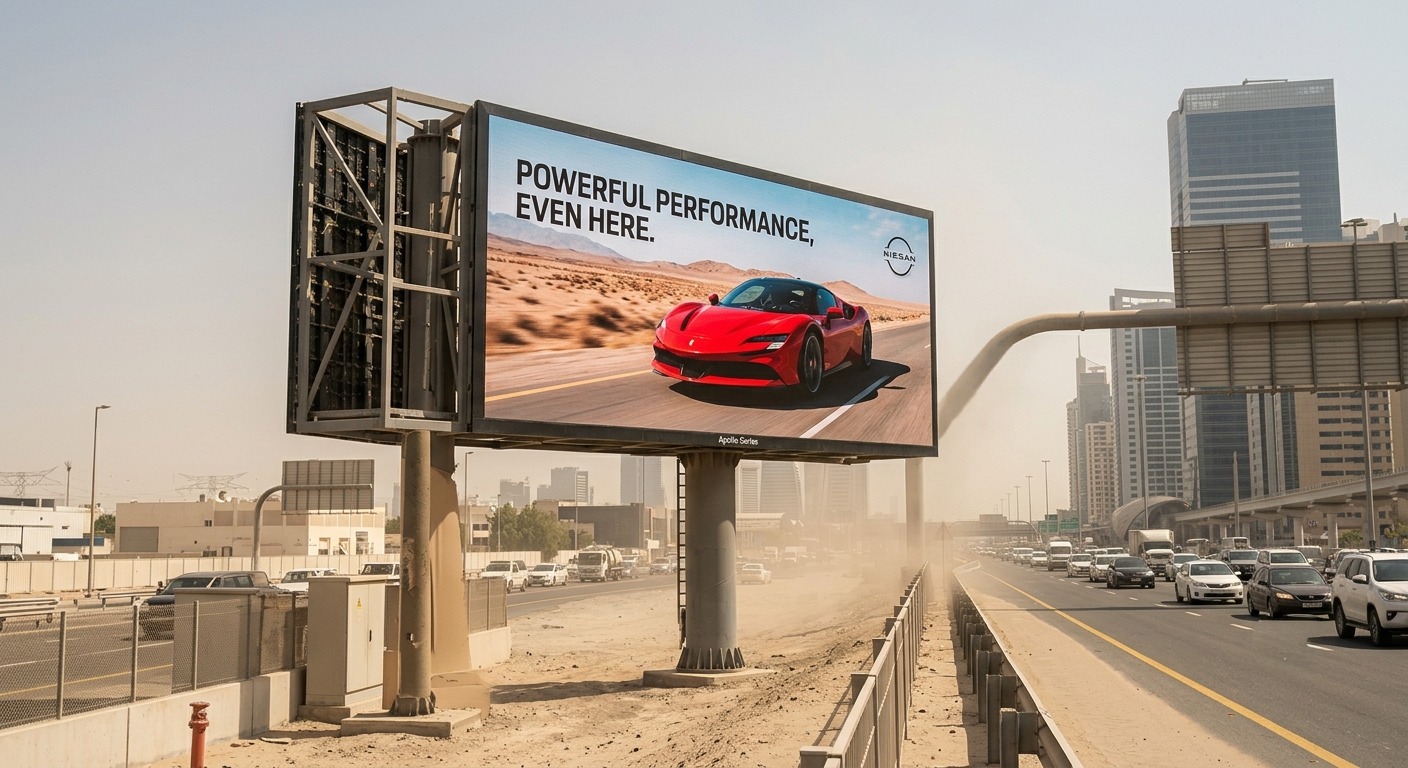

• High-impact roadside advertising with brilliant visibility for large-format outdoor
campaigns.
• Ideal for highways, hoardings, building facades and high-traffic locations.

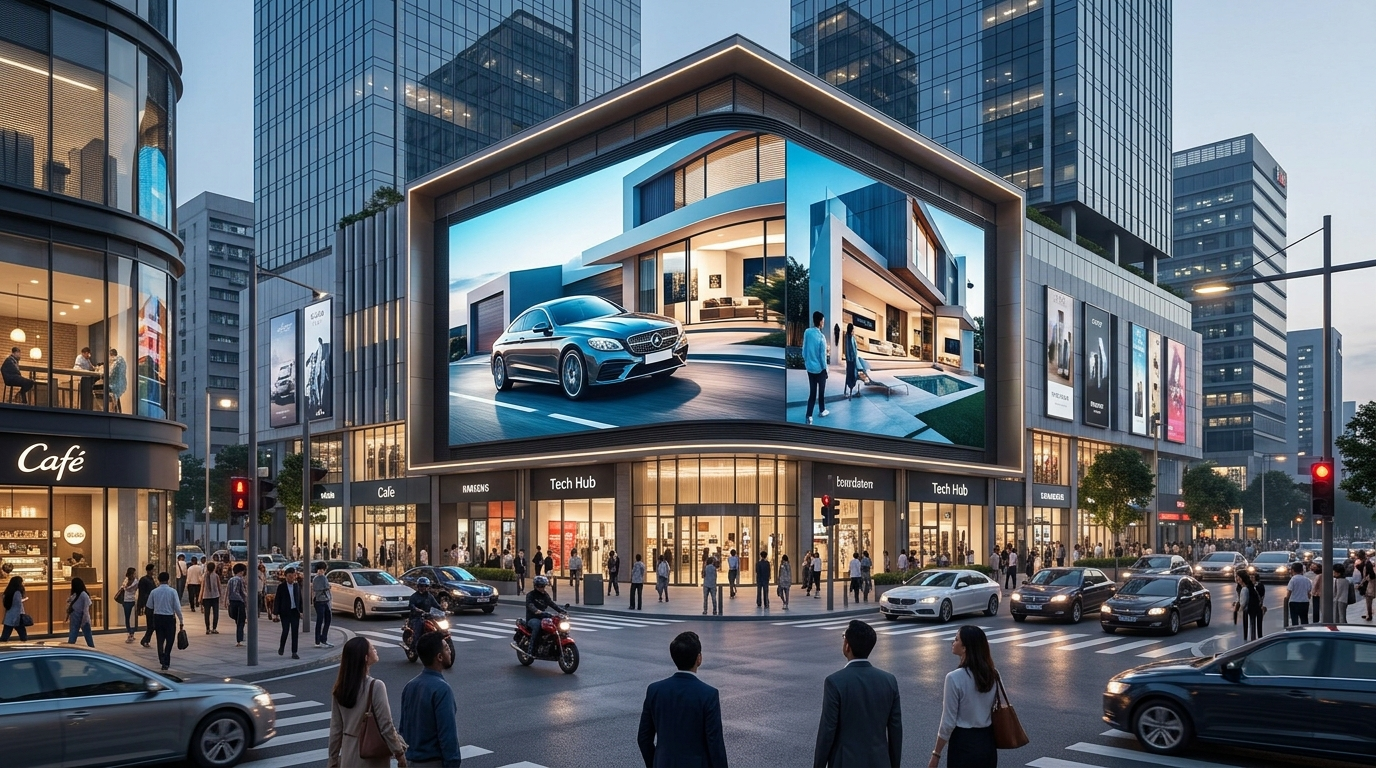

• Dynamic digital advertising designed to capture attention in busy urban
environments.
• Deliver vibrant brand communication across high-traffic public spaces.
• Transform building facades into powerful digital communication platforms.
• Ideal for branding, promotions and large-format visual experiences.

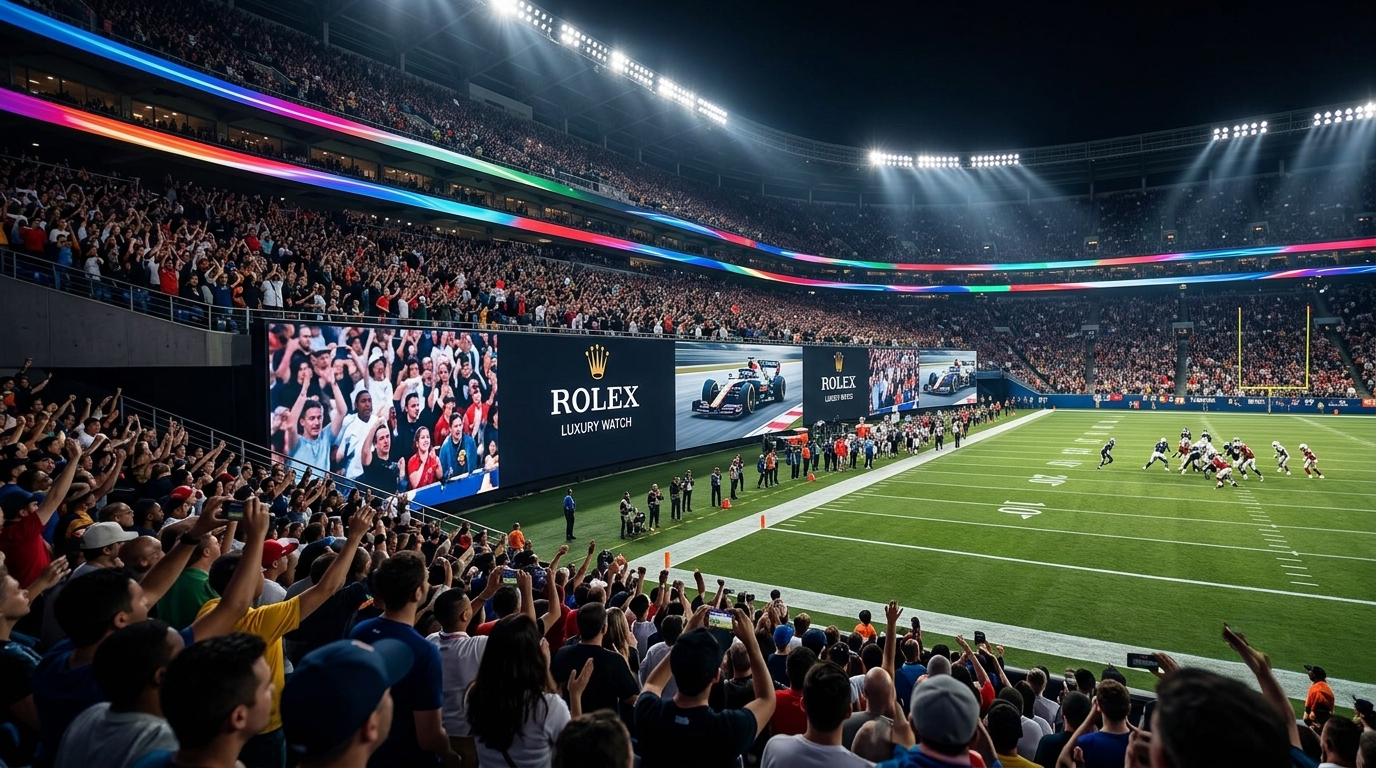

• Create high-impact visual experiences for live sports and large audiences.
• Perfect for advertising, audience engagement and stadium-wide digital communication.
• Reliable outdoor displays for modern public communication and digital
infrastructure.
• Ideal for city information, public messaging and smart urban environments.
| Item Number | P4.44 Outdoor | P5.71 Outdoor | P6.67 Outdoor | P8 Outdoor | P10 Outdoor |
|---|---|---|---|---|---|
| Pixel Pitch | P4.44 outdoor | P5.71 outdoor | P6.67 outdoor | P8 outdoor | P10 outdoor |
| Module Size (mm) | 480×320 | 480×320 | 480×320 | 480×320 | 480×320 |
| Module Resolution | 108×72 | 84×56 | 72×48 | 60×40 | 48×32 |
| Scan Mode | 9S | 7S | 6S | 4S | 2S |
| LED Configuration | 1921 | 2727 | 2727 | 2727 | 2727 |
| Brightness (nit) | >6000 | >6500 | >6500 | >6500 | >6500 |
| Driving Method | Constant Current | Constant Current | Constant Current | Constant Current | Constant Current |
| Refresh Rate | >3840 | >3840 | >3840 | >3840 | >3840 |
| Grey Scale | 16bit | 16bit | 16bit | 16bit | 16bit |
| Constant Color Range | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Viewing Angle (H/V) | >140° / >140° | >140° / >140° | >140° / >140° | >140° / >140° | >140° / >140° |
| Contrast Ratio | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
| Module Input Voltage (V) | 4.5~5 | 4.5~5 | 4.5~5 | 4.5~5 | 4.5~5 |
| Module Max Current (A) | 19 | 19 | 20 | 19 | 19 |
| Max Power (W/㎡) | 700~800 | 700~800 | 700~800 | 700~800 | 700~800 |
| Average Power (W/㎡) | 200~300 | 200~300 | 200~300 | 200~300 | 200~300 |
| IP Level | IP65 | IP65 | IP65 | IP65 | IP65 |
| Input Voltage (V)* | 110-240 | 110-240 | 110-240 | 110-240 | 110-240 |
| Display Weight | 25kg | 25kg | 25kg | 25kg | 25kg |
| Display Thickness | 80mm | 80mm | 80mm | 80mm | 80mm |
| Life Time (Hours) | >100000 | >100000 | >100000 | >100000 | >100000 |
| Working Temperature | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ |
| Working Humidity | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH |
| Certification | FCC/CE/RoHS/BIS |
