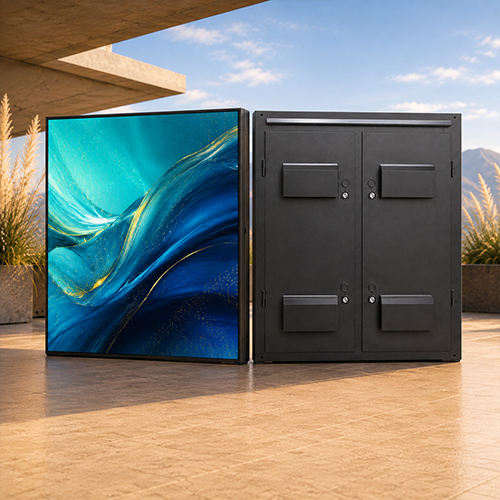

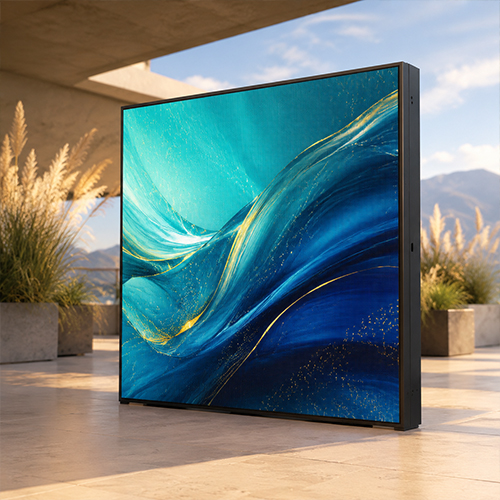

The Helios
is a premium Mild Steel (MS) Outdoor LED Cabinet engineered for projects that demand
exceptional durability, structural strength, and long-term reliability. Designed for fixed
outdoor installations, it combines a robust weather-resistant enclosure with intelligent
service access, making it an ideal solution for digital billboards, commercial signage,
transportation hubs, and large-scale LED video walls.
Manufactured using high-quality powder-coated mild steel, the Helios delivers
outstanding protection against harsh environmental conditions while ensuring stable

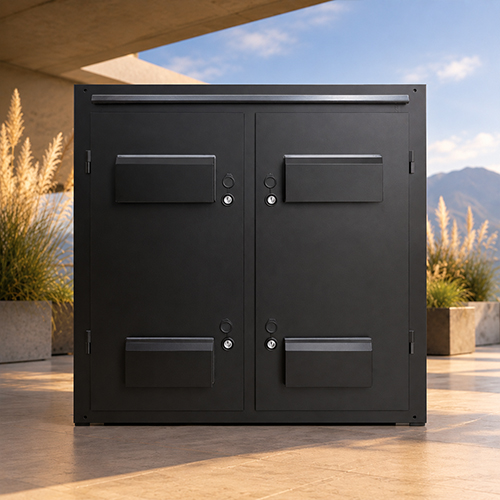

performance throughout its operational life. With secure lockable access doors, modular
internal compartments, and a maintenance-friendly design, it offers the perfect balance of
performance, security, and cost efficiency.

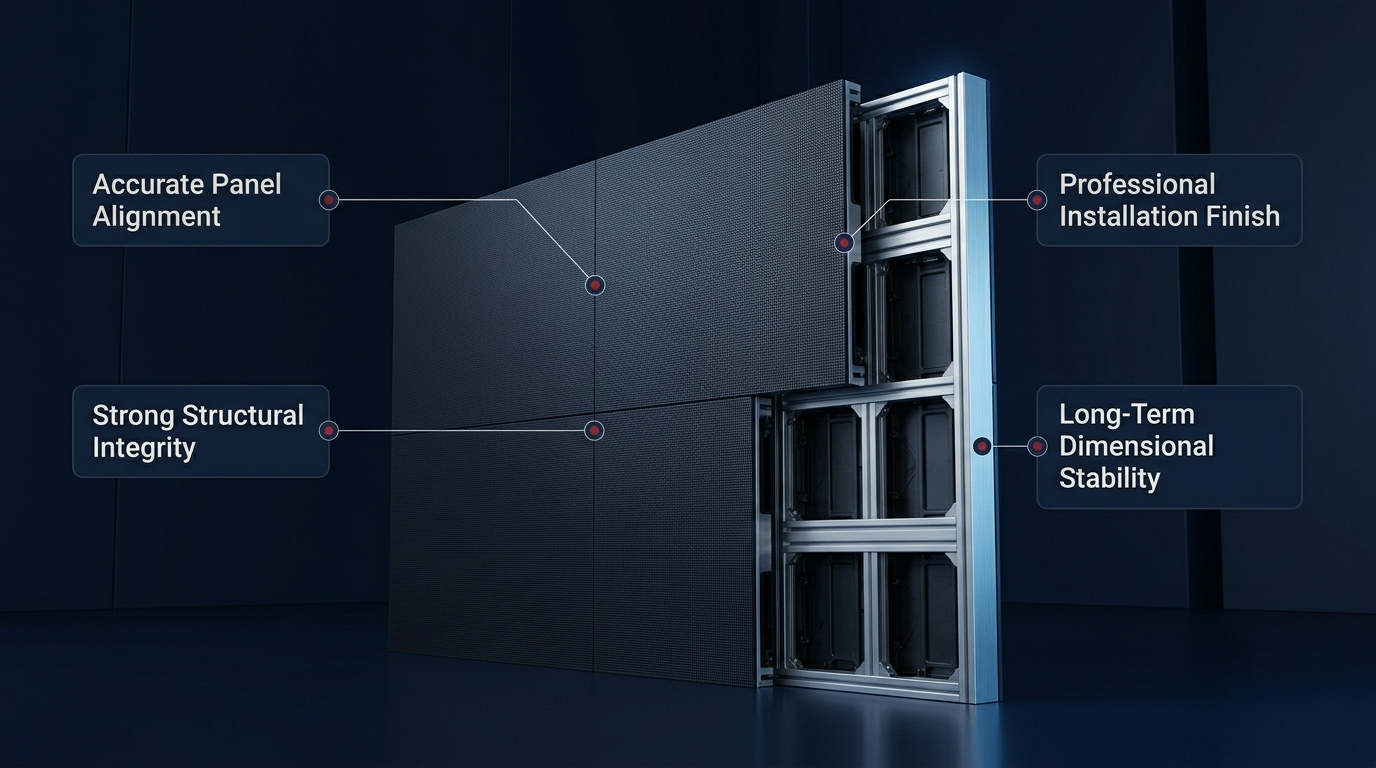

Manufactured with high-precision engineering for consistent cabinet alignment and seamless LED display assembly.

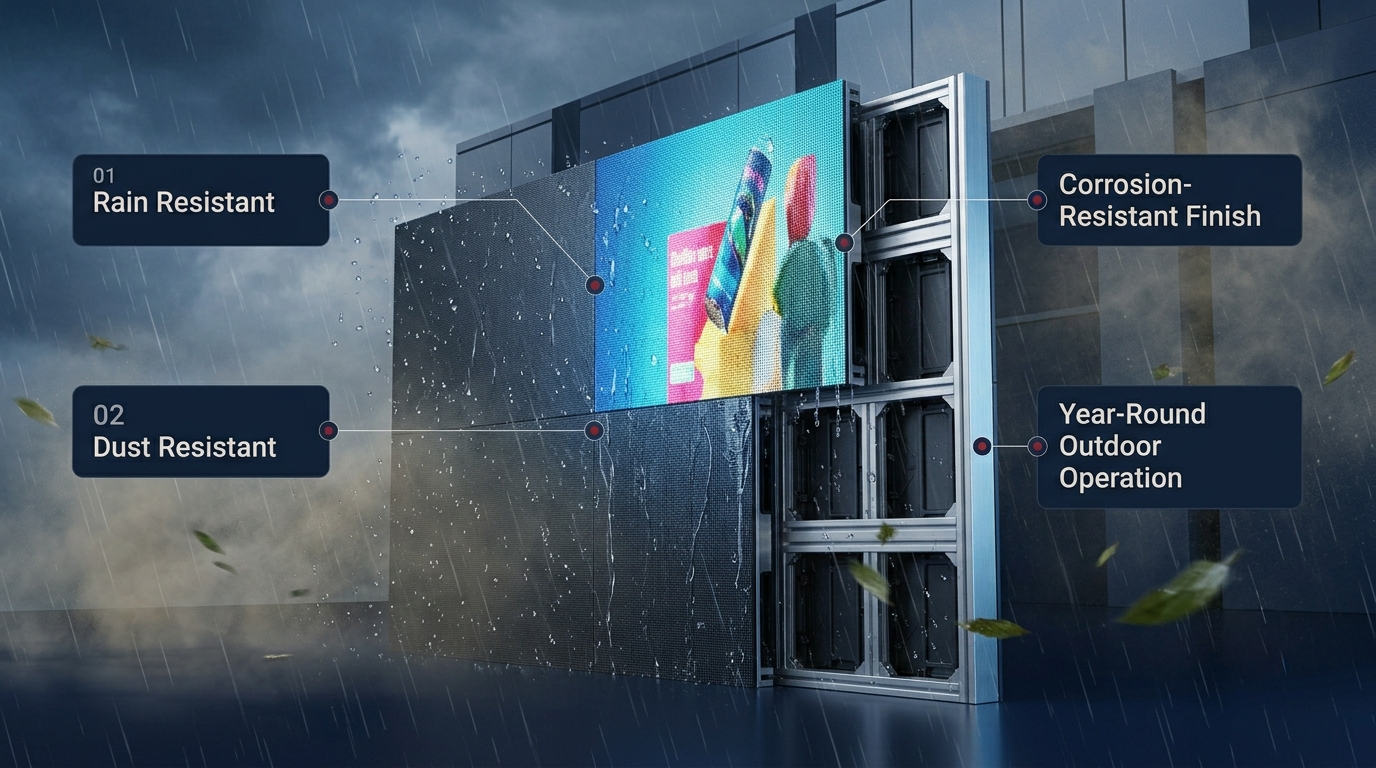

Designed to withstand challenging weather conditions while protecting critical LED components.

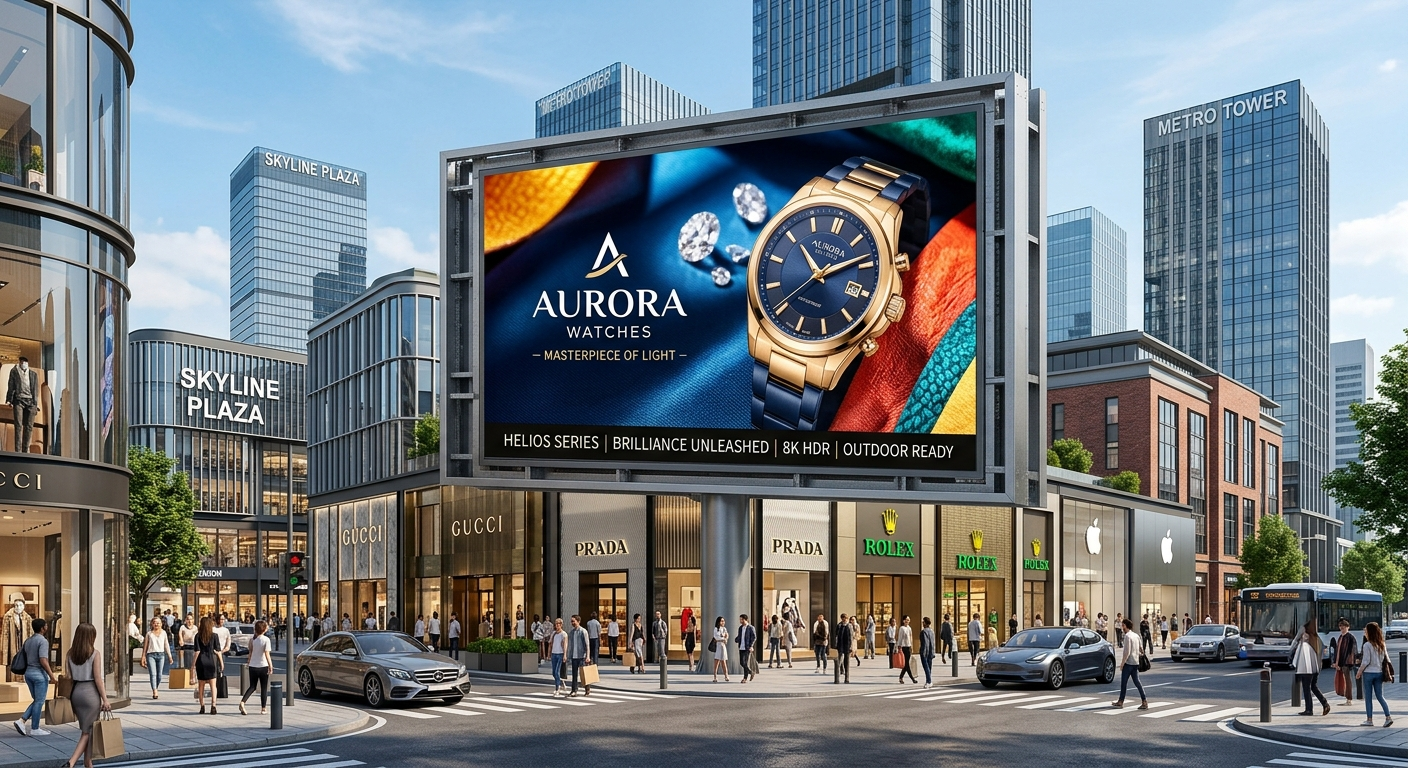

commercial advertising, retail storefronts, corporate buildings, transportation hubs, sports venues, entertainment spaces, public areas, and large-scale outdoor events. Its robust design and reliable performance make it suitable for applications that require high visibility, excellent image quality, and dependable operation in varying outdoor conditions. Helios can be used for digital signage, promotional content, brand communication, informational displays, live events, and other outdoor visual communication requirements.
Get Free Consultation
| Parameter | P3.076 Outdoor | P4 Outdoor | P5 Outdoor | P6.67 Outdoor | P8 Outdoor | P10 Outdoor |
|---|---|---|---|---|---|---|
| Module Size (mm) | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 |
| Module Resolution | 104×52 | 80×40 | 64×32 | 48×24 | 40×20 | 32×16 |
| Scan Mode | 13S | 10S | 8S | 6S | 5S | 2S |
| LED Configuration | 1415 | 1921 | 2727 | 2727 | 3535 | 3535 |
| Brightness (nit) | ≥5000 | >5000 | >5500 | >6500 | >6500 | >7000 |
| Driving Method | Constant Current | Constant Current | Constant Current | Constant Current | Constant Current | Constant Current |
| Refresh Rate | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Grey Scale | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit |
| Constant Color Range | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Viewing Angle (H/V) | >140° / >140° | >140° / >140° | >140° / >140° | >140° / >140° | >140° / >140° | >140° / >140° |
| Contrast Ratio | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
| Module Input Voltage (V) | 4.5~5 | 4.5~5 | 4.5~5 | 4.5~5 | 4.5~5 | 4.5~5 |
| Module Max Current (A) | 7~8 | 7~8 | 7~8 | 7~8 | 7~8 | 7~8 |
| Max Power (W/㎡) | 750~800 | 750~800 | 750~800 | 750~800 | 750~800 | 750~800 |
| Average Power (W/㎡) | 250~300 | 250~300 | 250~300 | 250~300 | 250~300 | 250~300 |
| IP Level | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Input Voltage (V)* | 110~240 | 110~240 | 110~240 | 110~240 | 110~240 | 110~240 |
| Display Weight | 29.5kg | 29.5kg | 29.5kg | 29.5kg | 29.5kg | 29.5kg |
| Display Thickness | 106mm | 106mm | 106mm | 106mm | 106mm | 106mm |
| Life Time (Hours) | ≥100000 | ≥100000 | ≥100000 | ≥100000 | ≥100000 | ≥100000 |
| Working Temperature | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ |
| Working Humidity | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH |
| Certification | FCC/CE/RoHS/BIS |
